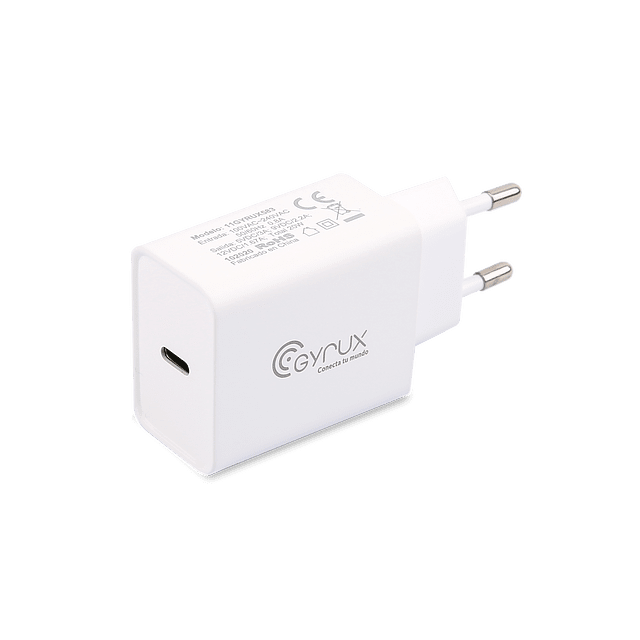

20W Type-C Wall Charger - GYRUX

This USB-C wall charger features the new format input. A USB-C connector system has 24 pins that are distinguished by their double symmetrical rotational reversibility, so the cable can be connected to the type-C input charger without a specific orientation.

The 20W Type-C charger is compatible with all devices that have the same input, including the latest generations of iPhone (iPhone 11 and 12).

It uses PD technology which allows USB-C connectors to deliver higher power levels to your devices. This type-C fast charger has a 20W output power which allows for maximum speed charging.

It is a type-C input charger more advanced than those with 3.0 technology, covering all market options and making it 20% more efficient. Incorporating the following safety features;

• Integrated PMIC
• Overvoltage protection.
• Overcurrent protection.
• Overcharge protection.
• Overheating protection.
• Short-circuit protection.
• Short current protection.

With SEC certification to offer greater device safety.

Technical specifications:

• Input Voltage: AC 100V~240VAC 50/60Hz 0.55A
• Output Voltage: USB C: 5V(4.75-5.25)3A
• 9V(8.55-9.45)2.22A 12V(11.4-12.6) 1.67A
• Charging Voltage: 4.75-5.25V
• Fast Charging: PD3.0/PD2.0/ QC3.0/QC2.0/FCP/AFC
• Charging Efficiency ≥75%
• Ripple Current: ≤210mVp-p

Box contents:

• 20W USB C Charger
