Extended Heatsink
The extended heatsink design and Frozr shield for M.2 ensure that VRMs and Gen5 SSDs perform at maximum capacity without thermal throttling.
OURBIZ-US Shop

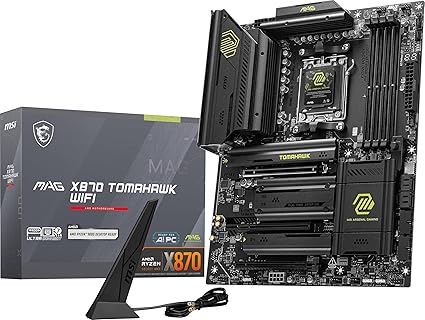

MSI MAG X870 Motherboard
$350.00
Garantía de 2 años
Devoluciones gratis
Pago seguro
Stock disponible
About this product
MSI MAG Series / Durability & Performance
MSI MAG X870 Tomahawk WiFi - AM5 Motherboard, DDR5, PCIe 5.0 and USB4
The gamer's favorite evolves: ready for Ryzen™ 9000 with WiFi 7 and tool-free installation.
The legend continues. The MSI MAG X870 Tomahawk WiFi arrives to dominate the new generation of AMD Ryzen™ 9000 series (and 8000/7000) processors. Built under the MAG series philosophy of robustness and reliability, this motherboard offers a stable power foundation and premium cooling, perfect for gamers looking for pure performance without complications or unnecessary lights.
Get ready for the future of connectivity. This model integrates the latest in speed: WiFi 7 for wireless gaming with zero latency, 5G LAN for ultra-fast wired networking, and 40Gbps USB4 ports. Additionally, MSI has revolutionized installation with its EZ DIY features, allowing you to install SSDs and graphics cards without using screwdrivers.
🌐Next-Gen Connectivity
Equipped with WiFi 7 (up to 5.8 Gbps) and 5G LAN. Enjoy massive downloads in seconds and unparalleled online gaming stability, surpassing current standards.
⚡Integrated USB4 (40Gbps)
Transfer large files instantly or connect high-resolution monitors. Rear USB4 ports offer massive bandwidth, compatible with Thunderbolt devices and advanced docks.
🛠️EZ DIY Design (Tool-Free)
Forget tiny screws. Includes EZ PCIe Release (a button to easily release the GPU), EZ M.2 Clip II (one-click SSD installation), and a quick-connect magnetic WiFi antenna.
Thermal Engineering & Power
Designed to keep your system cool and stable under intense loads.
PCIe 5.0 Ready
Reinforced steel (Steel Armor II) PCIe 5.0 x16 primary slot to support the heaviest graphics cards and future next-gen GPUs.
4 M.2 Slots
Plenty of storage. Includes Lightning Gen 5 and Gen 4 slots so you can install multiple NVMe SSDs and load your games instantly.
Stealth Aesthetics
An elegant, matte black design without excessive RGB, ideal for professional builds or gamers who prefer a clean and serious look.
Detailed Technical Specifications
| Model | MSI MAG X870 TOMAHAWK WIFI |
| Chipset | AMD X870 |
| Socket | AM5 (Ryzen 9000 / 8000 / 7000) |
| Memory | 4x DDR5 Slots (+8000 MT/s OC) |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 |
| Storage | 4x M.2 (2x Gen5, 2x Gen4), 4x SATA |
| Networking | Wi-Fi 7, Bluetooth 5.4, 5Gbps LAN |
| Rear Ports | 2x USB4, 5x USB 10Gbps, HDMI 2.1 |
| Audio | Realtek ALC4080 (7.1 High Performance) |
| Form Factor | ATX (243.84mm x 304.8mm) |
⚠️ Attention: To enjoy WiFi 7 speeds, you need a WiFi 7 compatible router and Windows 11 (version 24H2 or higher) installed. The USB4 port supports video output, but requires the processor to have integrated graphics or to use the DP-in input if available.
Frequently Asked Questions about the MSI MAG X870 Tomahawk
How does the button to release the graphics card work?
It's the EZ PCIe Release system. Instead of trying to get your finger under a giant graphics card to press a latch, you simply press an accessible button on the side of the board and the card releases automatically.
Does it support older Ryzen 7000 processors?
Yes, the AM5 socket is compatible with Ryzen 7000, 8000, and the new 9000. The X870 chipset simply offers better connections (USB4/WiFi 7) compared to previous boards.
How many Gen5 SSDs can I install?
This motherboard supports M.2 Gen5 storage in its primary slots, allowing you to take advantage of the read speeds of over 10,000 MB/s from the latest SSDs.
